Eddi- Solar energy Water Heater diverter
Benefits
The Eddi is the perfect complementary product for Solar PV systems that struggle to capture excess energy, created during sunny periods. Using a wireless sensor installed on the meter tails, the Eddi detects any exported energy, usually from solar generation & then using varisine patented technology, diverts only the excess amount of energy to your resistive heating load (ie immersion heater) mitigating gas or oil consumption for hot water heating.
"I switch off my gas hot water in early April & my water heating needs are met by the Eddi up until late September saving me hundreds of pounds in gas costs" Laurence-Basingstoke
Features

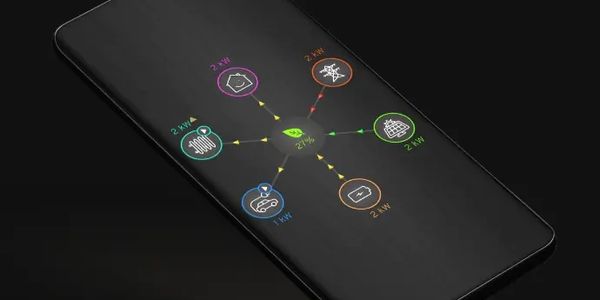

- Visibility via the downloadable App of diverted energy & other Myenergi products.
- intelligent daylight-saving time adjustment.
- Programmable periods & boost button to replace Economy 7 controllers.
- Overload and short-circuit protection.
- Varisine technology ensures that the power from the eddi is the same quality as that of the electricity that enters your property from the grid. Cheaper controls such as phase angle could save money on the initial cost of the unit, however, may end up costing you in the future.
- Optional wireless installation via harvi.
- 3-year warranty.
- UK-based manufacturer & technical support
Requirements
- Dedicated immersion circuit.
- Working immersion element. Check by switching on (should sound like a kettle boiling if the cylinder is not already up to temperature.
- If the immersion circuit is shared by other equipment such a shower pumps, central heating, intruder alarms, then the Eddi will need to be located at the cylinder position & will require a Harvi wireless sensor in addition located at the meter position to see any export & signal to the Eddi.
- Wifi connectivity to benefit from remote monitoring & control.
Works with;
- Myenergi offers a suite of products that connect via a common interface, that can be viewed & controlled via a mobile app or a web page.
- The Zappi car charger.
- The Libbi battery/energy store.
- Additional current sensors to display 3rd party equipment such as existing PV or AC connected batteries.
